AutoGrow Systems EC Mini Doser With 2 Peristaltic Pumps (300ml/min)

The EC Mini Kit Is The Latest EC Controller In Family Of Monitors & Dosers That Have Been Proven Over Many Years For Quality Dose Control

This latest monitor/controller has built upon a pedigree of simplicity and innovative features. The EC Mini may be used as a mains-powered monitor or, by adding two peristaltic pumps, it becomes a fully functional dosing system, managing fluctuations in either your Electric Conductivity, Conductivity Factor, or Total Dissolved Solids. EC, CF, and TDS fluctuations in your reservoir are not only time-consuming to correct but can have negative effects on your crop performance.

Adding peristaltic pumps will allow you to keep your EC adjuster in larger containers on the floor, avoiding issues associated with gravity-fed valves.

The EC Mini Contoller display shows EC (CF/TDS), Dose Count Total (DCT) and Dose Count per Hour so you can fine tune your set up to your exact needs.

LEAK ALARMS

Checking dose count is useful if a leak should develop or the pump fail and should prevent continuous dosing alarms. The alarms can be enabled to operate on the controller when the EC or DC/h deviates outside the user set-point.

AFFORDABILITY

The EC Mini is affordable enough to be used as a mains powered monitor, continuously displaying the measured electrical conductivity. By adding solenoid valves or dosing pumps it becomes a low cost dosing system.

Tech Specs

• Reading can be changed to EC or CF
• Timed dosing for easy set-up
• Range from 0 to 9.9mS (0 to 99CF)
• Resolution 0.01mS/cm (0.1CF)
• Two year warranty
• Graphite electrodes for minimal contamination
• Easy to recalibrate by using 27.64CF standard solution
• Displays dose count
• If dose count per hour exceeds user limit, alarm sounds and dosing stop
• Built-in alarm (can be turned off)

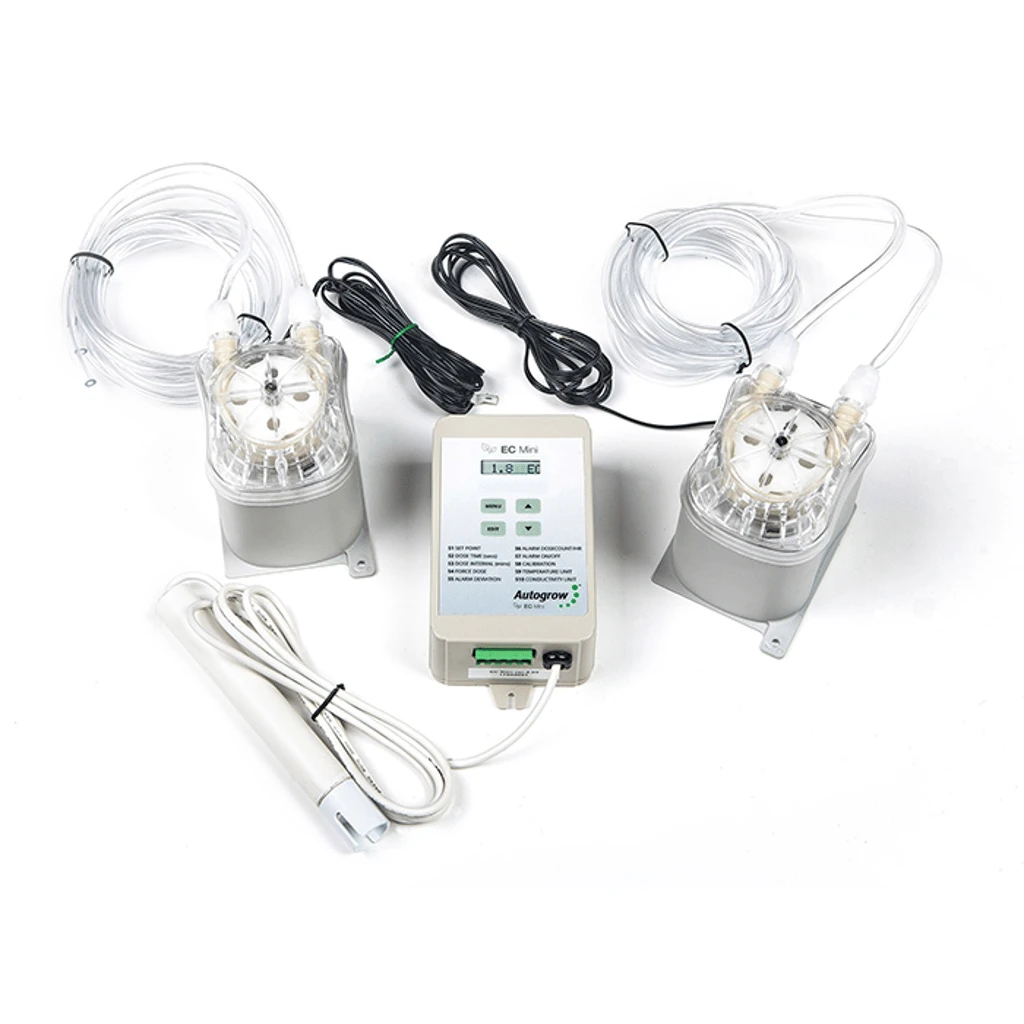

What’s Included

EC Mini Controller

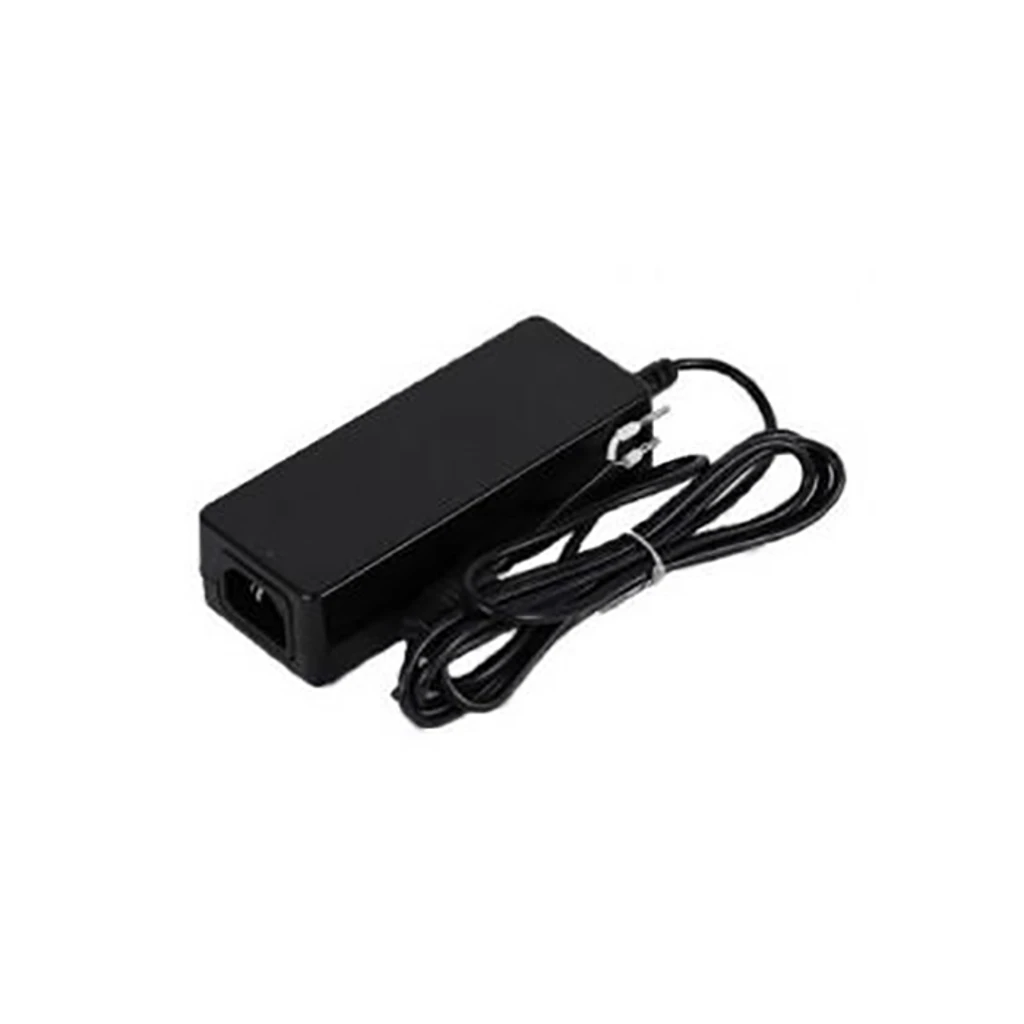

24V DC 2.5A power supply with universal plug

EC Probe

Mounting hardware

Instruction manual

2x Mini Perstaltic Pumps

Typical EC Mini Installation Set Up
