DIG Excel Series 17 Mm Pressure Compensating Dripline With Built-In Check Valve

Durable and precise pressure compensating dripline used for narrow or dense plantings

DIG’s Excel PCD 17mm CV Pressure compensating, Dual Outlet Dripline with Check Valve for subsurface irrigation is a reliable, durable and precise pressure compensating dripline used for narrow or dense plantings. The dripline’s cylindrical drip emitters have built in check valves to prevent siphoning when water pressure drops below 2.5 PSI. This feature protects the inline emitters from sediment, soil particles and debris entering the dripline.

Each cylindrical drip emitter’s floating diaphragm regulates and maintains a consistent flow rate at variable inlet pressures ranging from 12 to 50 PSI in a wide range of demanding conditions. Excel PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve provides a colored stripe for each flow rate and unlike another dripline with only a single outlet, Excel PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve has two outlets per emitter.

If one outlet becomes blocked, a second outlet on the opposing side of the dripline provides redundancy to the dripline performance. The Excel PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve is made of premium low-density polyethylene resins with UV protection and large, tough cylindrical drip emitters, offering a combination of outstanding environmental stress-cracking resistance and burst strength with anti-siphoning capability for subsurface irrigation applications.

The dripline is available with emitters in 12″ or 18″ spacing.

The dripline is available with flow rates of 0.6 or 1 GPH

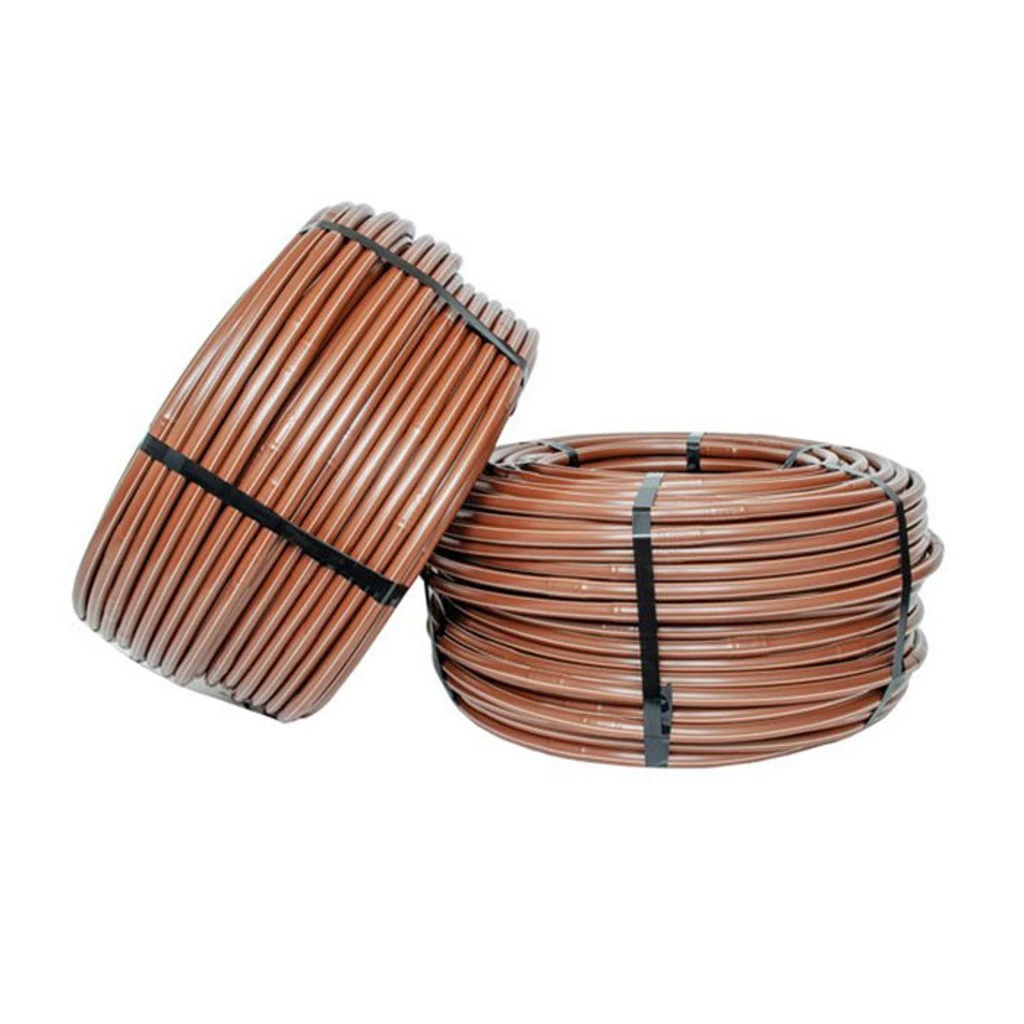

Available in 100′, 250′, 500′ and 1000′ coils

Line Diameter of .570″ ID x .670″ OD

---

Features:

• Can be installed above or below grade
• Inline emitter check valves prevent drainage from the dripline when water pressure drops below 2.5 PSI, protecting the emitters against the siphoning of small sediment and soil particles into the drip emitter
• Two outlets per emitter; If one outlet becomes blocked, a second outlet on the opposing side of the dripline provides redundancy to the dripline performance
• Available in two flow rates, a wide range of emitters spacing and a wide range of drip tubing lengths to provide maximum design flexibility in a variety of applications
• Available with double stripes colored codes, representing the drip line flow rates
• Pressure compensating feature provides flow uniformity regardless of operating pressure and variation along the line
• Drip emitter and diaphragm are self-contained units molded to the interior wall of the tubing
• Flow path design supports superior clogging resistance
• Turbulent flow through large labyrinth water passages leads water into the flow control chamber where a sensitive floating silicon diaphragm regulates and maintains a constant flow rate at variable inlet pressures. The self-flushing silicon diaphragm allows pressure to build up within the chamber and flush any debris not captured by the inlet filter.
• Dripline includes one inlet and two outlets per each emitter
• Intake inlet has a number of raised grooves that act as a secondary filter. The filter intake area is continuously flushed by water flow throughout the operation of the system, preventing particles from entering the labyrinth and giving the drip emitter its resistance to clogging.
• Check valve and dual, oppositely oriented directional outlets act as a physical barrier to root and debris intrusion
• Resistant to chemicals and fertilizers commonly used in landscaping
• Protected against UV degradation
• Flexible tubing for easy installation
• Dripline is printed with the flow rate and size for easy identification
• Use with DIG’s 17 mm barb fittings, .670″ OD compression fittings and universal Nut Lock™ fittings

---

Specifications for the Micro-Line Dripline

• Nominal flow rates:
  • .6 GPH (2.3 L/H) drip emitter color code – orange
  • 1 GPH (3.8 L/H) drip emitter color code – gray
• Operating pressure: 12-50 PSI (.8-3.5 BAR)
• Check Valve Sealing pressure: 2.5 PSI (.17 BAR)
• Check Valve Opening pressure: 4.3 PSI (.3 BAR)
• Materials: Dow FINGERPRINT™ DFDA-7510 NT linear low-density polyethylene resin with a minimum of 2% carbon black
• Size: 1/2″ (.570″ ID x .670″ OD)(14.5 mm ID x 17 mm OD)
• Spacing: 12″ or 18″
• Available in: Available in 100′, 250′, 500′ and 1000′ coils (30 m, 75 m,150 m and 300 m)
• Minimum bending radius: 1′ (.3 m)
• Filter requirement: minimum of 150 mesh
