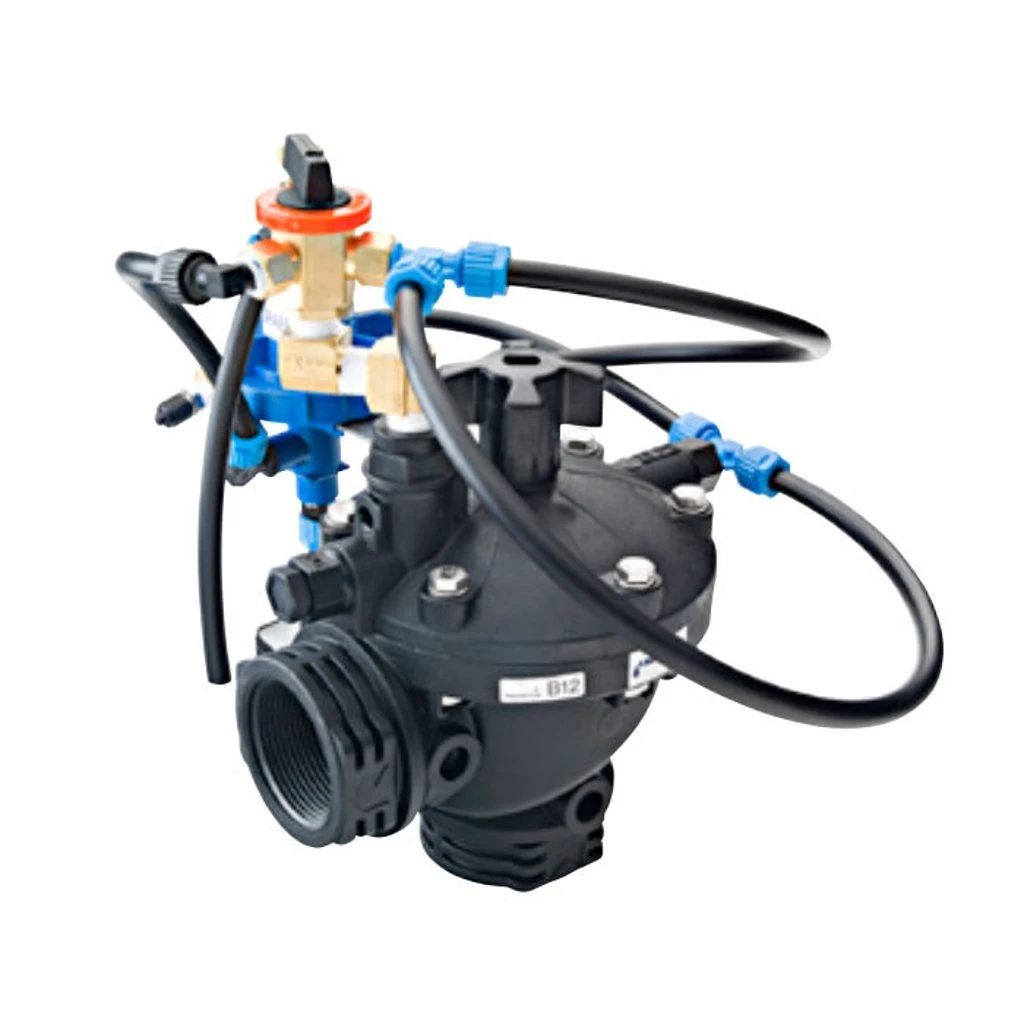

Netafim Series 80 3-Way Angle Control Valve

Netafim 3-Way Series 80 Nylon Control Valves

With lower friction loss providing improved performance, Netafim Series 80 Nylon Control Valves are specifically designed for greenhouse applications. Offered with a nylon body (which is durable and corrosion-resistant), 2-Way or 3-Way electric solenoid and globe or angle configurations. These valves have a quick reaction to opening and closing which is ideal for mist systems. The low inrush and holding currents allows longer wire runs from valve to controller. A new drip-tight diaphragm provides a tight seal. Flow control stem allows manual control and the simple inline installation requires minimal maintenance with maximum dependability.

---

Features

• All control systems (pilot and solenoid) are assembled on the bonnet. No tubes are connected to the valve body.
• Tight sealing valve with fully supported diaphragm.
• Straight or angle with globe configuration activated by a fully supported diaphragm
• ntegrated check valve ensures valve remains closed until the controller designates opening.
• Vertical or horizontal installations

---

Applications

• Pressure regulation of irrigation systems – small blocks
• For remote control, master valve, automated or manual operations – accurate irrigation control
• Greenhouse and Nursery irrigation including hydroponic and mist systems

---

Specifications

• Recommended flow range:
  • 1 ½” valve – .25 to 110 GPM
  • 2” valve – .25 to 176 GPM
• Valve Configurations:
  1 ½” and 2” valves – Globe or Angle
• Minimum Operating Pressure: 7 psi
• Maximum Operating Pressure: 150 psi
• Maximum Water Temperature: 140° F
• Optional Solenoid Voltage: 24VDC, 12VDC, 12VDC latching, 120VAC

---

Materials

• Body, Bonnet, Diaphragm Seat: Glass Reinforced Polyamide (GRP)
• Nuts, Bolts, Washers: Stainless Steel 304
• Spring: Stainless Steel AISI 302
