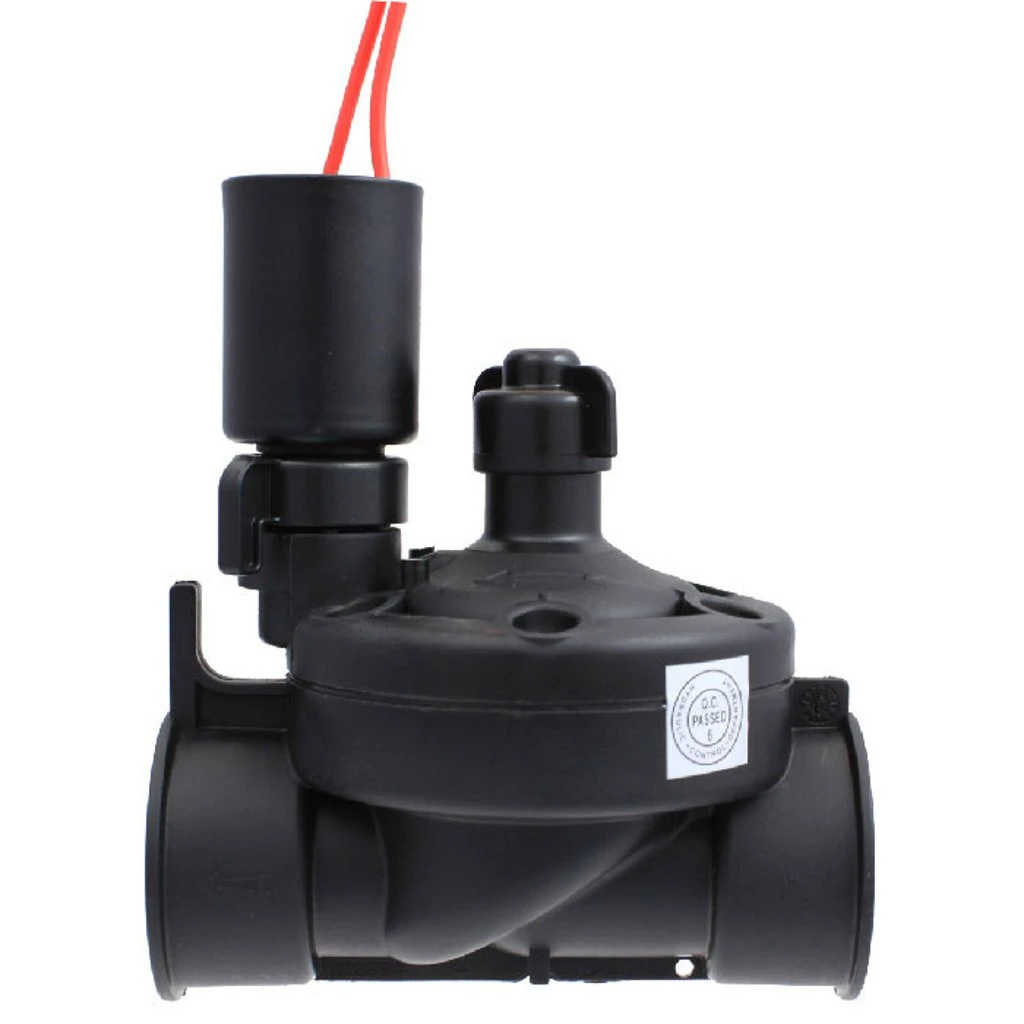

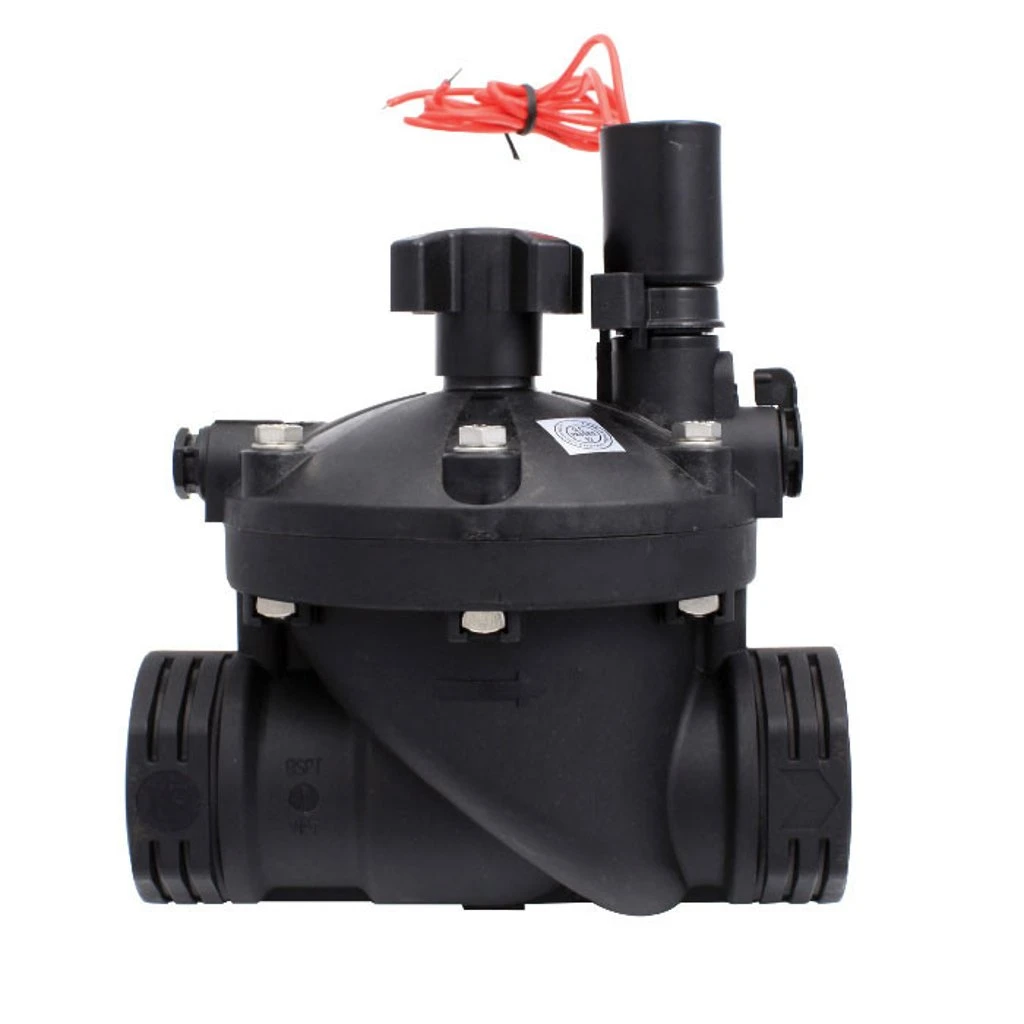

Netafim Series 80 Globe Control Valve

Netafim Series 80 Nylon Control 2-Way Valve

Lower Friction = Improved Performance

With lower friction loss providing improved performance, Netafim Series 80 Nylon Control Valves are specifically designed for greenhouse applications. Offered with a nylon body (which is durable and corrosion-resistant), 2-Way or 3-Way electric solenoid and globe or angle configurations. These valves have a quick reaction to opening and closing which is ideal for mist systems. The low inrush and holding currents allows longer wire runs from valve to controller. A new drip-tight diaphragm provides a tight seal. Flow control stem allows manual control and the simple inline installation requires minimal maintenance with maximum dependability.

---

Product Advantages

Proven Reliability with Reclaimed Water: Over a decade of field-proven, consistent performance under the harshest water conditions. Durable and corrosion-resistant materials.

2-Wire System Compatibility: Works with all major manufacturer 2-Wire control systems.

• Flow control stem allows manual control from full closure up to maximum capacity
• Suitable for dirty water applications with clog-free labyrinth inlet for command water.
• Quick reaction to opening and closing and a drip-tight seal for accurate irrigation.
• Available in multiple body configurations and control functions.
• Very low friction loss allows valve use with a wider range of flows.
• Durable, corrosion resistant materials for long life.

---

Applications

• Residential or commercial landscape irrigation applications
• For mild corrosive and mild acidity levels in the water
• For remote control, master valve, automated operations
• Reclaimed/reuse applications including municipally treated reclaimed water designated for irrigation

---

Specifications

• Recommended flow range:
  • 3/4” – 0.01 to 26 GPM
  • 1” – 0.01 to 44 GPM
  • 1 1/2” – 0.25 to 110 GPM
  • 2“ – 0.25 to 176 GPM
• Minimum operating pressure: 7 psi
• Maximum operating pressure: 150 psi
• Water temperature: up to 140° F
• Improved manual selector and encapsulated solenoid available on 3/4” and 1“ models only
• 24VAC solenoid standard +/- 10% voltage
• Solenoid inrush current: 0.220A
• Solenoid holding current: 0.095A
• Optional Solenoids: 24VDC, 12VDC, 12VDC-latching and 120VAC
• Integral stainless steel EasyClean® filter for 1.5” and 2” models only
• Adjustable pressure regulator option available: 1.5″ and 2″ model
  • Normally Closed Option: 3/4″ – 2″
  • Normally Open Option: 1 1/2″ – 2″
