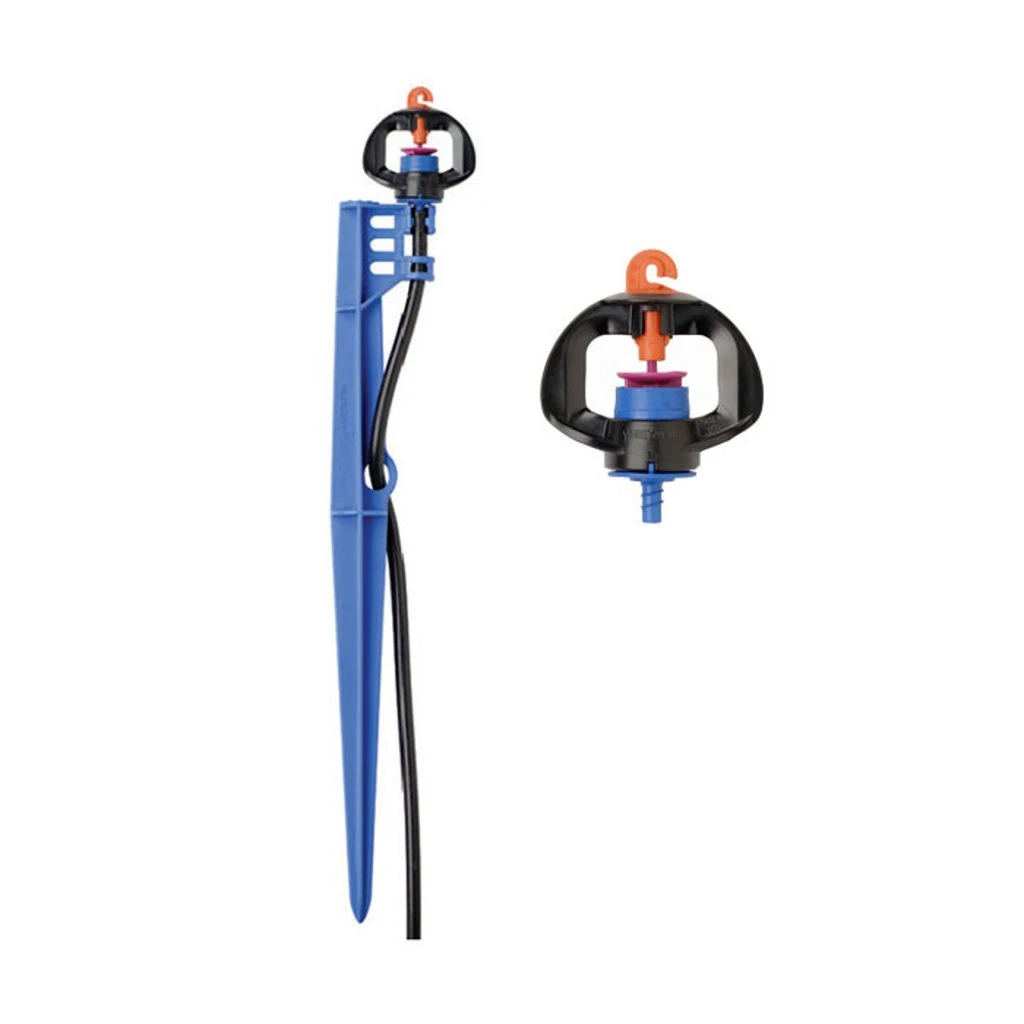

Netafim SuperNet Jr Sprinkler Assembly, Pack Of 25

SuperNet Jr. – Uniform Water & Nutrient Distribution

When you are irrigating orchards with a variety of tree root volumes, you can count on SuperNet Jr micro-sprinklers, to deliver high crop uniformity while keeping your operating costs nice and low.

SuperNet Jr. features an EverSpin Sapphire Bearing – the toughest, hardest, longest-life sprinkler bearing on the market. This precision manufactured bearing crafted out of a sapphire material – one of the hardest surfaces known – has been added to the bearing of the sprinkler at the point where the swivel’s pin meets the bearings surface wear-point – reducing friction, wear and promoting long-lasting sprinkler performance.

What Comes Included?

• (x25) Sprinkler Heads
• (x25) Stakes
• (x25) 30 Inch Tubing

Product Advantages

• Highest distribution uniformity and maximum diameter.
• Long-term reliable service:
  • Restricting orifice stabilizes and directs stream for strong, spinning motion.
  • Engineering-grade materials and heavy-duty bearing for superior endurance.
• Universal Quick-Connect Thread – easily replaces most brands of jets or non-compensated micro-sprinklers.
• Everspin bearing has a layer of sapphire surface keeps the swivel centered during operation and improves start-up

---

Why SuperNet Jr.?

Non-Pressure regulating high-performance micro sprinkler

• Long Range Swivel with Stream Deflector (LRD): New & Improved swivel sprays a wider pattern resulting in a larger wetted diameter.
• Available in three color-coded nozzle options: Its clog-resistant and simple, modular design and large water passages deliver long-term reliable service.
• Anti-insect mechanism: Drop-down spinner prevents the entry of insects that can cause clogging, and minimizes repairs and maintenance.

Applications

• Orchard, Vineyard and Nursery micro-sprinkler installations where flow regulation is not required.
• Sprinkler mounting options:
  • Suspended from trellis wire by integral hook.
  • Placed in the ground with MicroNet stake.
  • Threaded into an existing PE micro-tube as a replacement sprinkler.
• Steel Stake (Optional): For applications where high riser heights are required.
• Stream Splitter: Divides the stream to eliminate water on trunk.

---

Specifications

• Base connection options:
  • Quick-Connect thread (standard)
• Flow range: 6 – 50 GPH
• Recommended Pressure range: 15 – 35 psi
