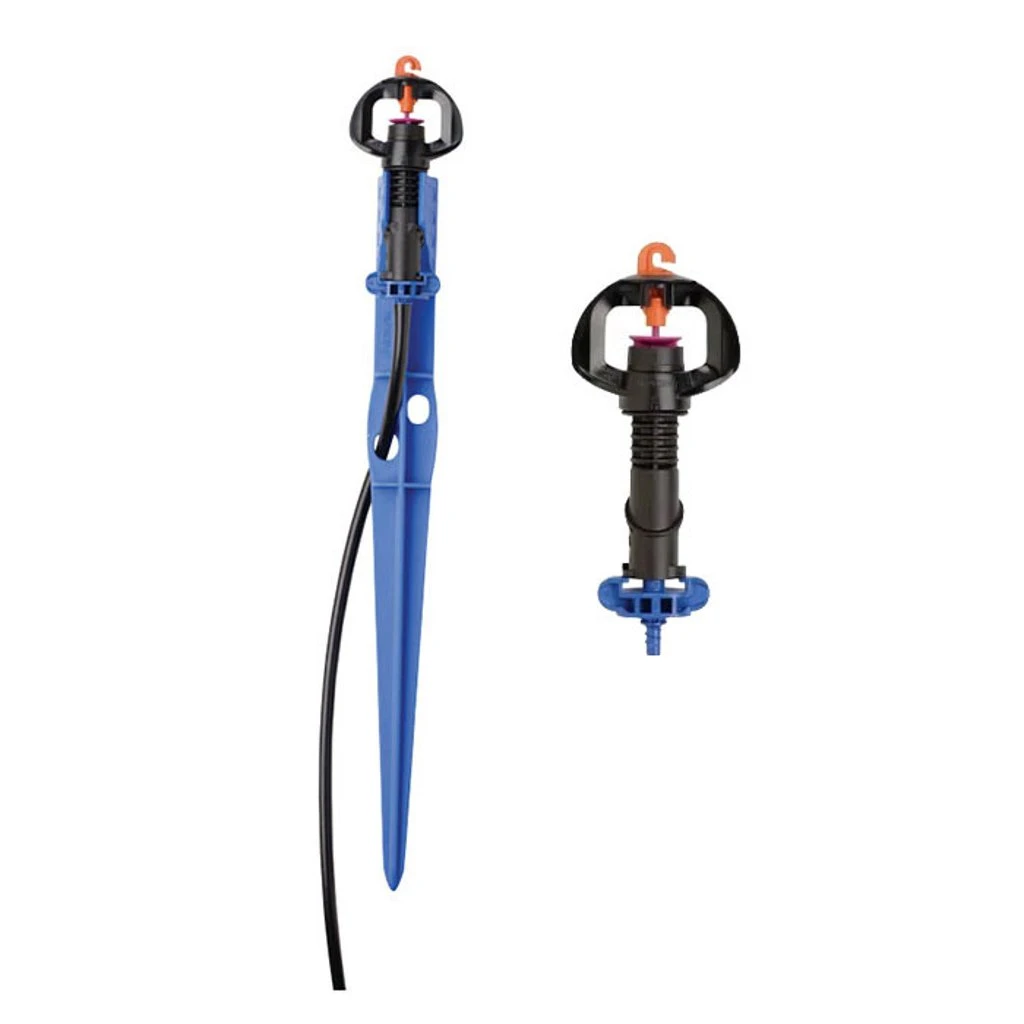

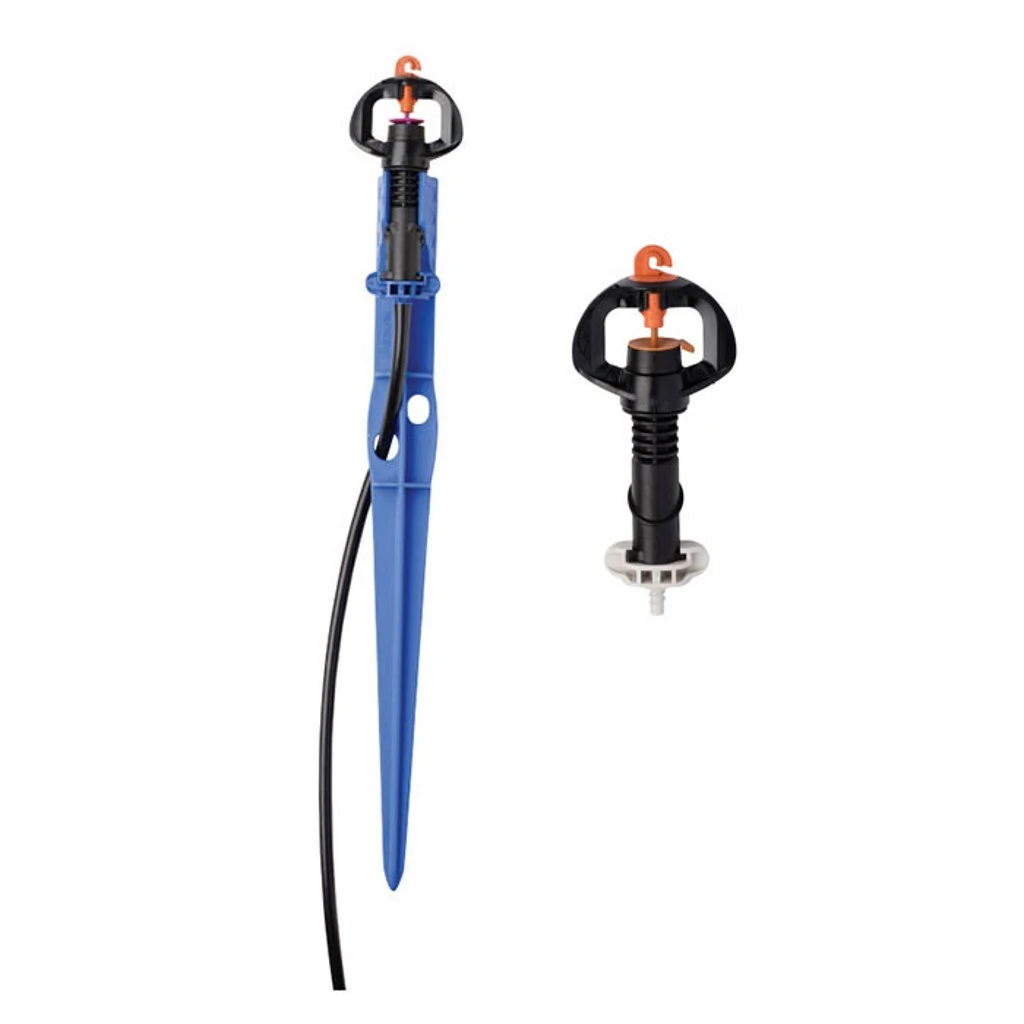

Netafim SuperNet Sprinkler Assembly, Pack Of 25

SuperNet – Pressure Regularted Bug-Proof Micro-Sprinkler

Pressure-regulated sprinklers maintain uniform flow across a broad range of pressures. Featuring an EverSpin Sapphire Bearing – the toughest, hardest, longest-life sprinkler bearing on the market. This precision manufactured bearing crafted out of a sapphire material – one of the hardest surfaces known – has been added to the bearing of the sprinkler at the point where the swivel’s pin meets the bearings surface wear-point – reducing friction, wear and promoting long-lasting sprinkler performance.

What Comes Included?

• (x25) Sprinkler Heads
• (x25) Stakes
• (x25) 30 Inch Tubing

Product Advantages

• Highest distribution uniformity: Unique nozzle tube prevents negative effects of varying inlet pressure on the wetted diameter.
• Wide regulating range and floating, self-flushing diaphragm maintains uniform flow across a broad pressure range.
• Engineering-grade materials and heavy-duty bearing results in superior endurance and long-term reliable uniformity.
• Everspin bearing has a layer of sapphire material to reduce friction and wear, promoting long-lasting sprinkler performance. Bearing keeps the swivel centered during operation and improves start-up

---

Why SuperNet?

Largest water passages on the market – prevents clogging

• *Optional: Long Range Swivel with Stream Deflector (LRD): New & Improved swivel sprays a wider pattern resulting in a larger wetted diameter.
• Anti-insect mechanism: Drop-down spinner prevents the entry of insects that can cause clogging and minimizes repairs and maintenance.
• Jet spray option: Includes four spray patterns and a wetted diameter up to 18 feet. Switching from a rotating swivel spray to a fixed jet stream plate is easy and economical.
• Easily Adaptable: A stream deflector easily snaps on to the frame to temporarily restrict spray diameter. Quick-connect thread base is convenient for new installations but excellent for replacing older sprinklers.

Applications

• For orchard, vineyard and nursery micro-sprinkler installations where flow regulation and insect resistance is desired.
• *Swivel Spray Options: These options are non-stock items. Please reach out for availabilty
  • LR (Long Range) – for maximum coverage
  • MR (Medium Range) –for the middle area.
  • SR (Short Range) – for closer spacings.
  • Breakaway Stream Deflector: For Long Range, Medium Range or Short Range.
• Jet Spray Options: 12 Stream, 360°, 10 Stream, 300°,  8 Stream Butterfly, 2 x 120°, 6 Stream, 180°
• Sprinkler Mounting Options – Suspended from trellis wire by integral hook. Or placed in the ground with one of two SuperNet stake options.
• Optional Steel Stake: Ideal for applications where high riser heights are required and install in dry, hard soils – no need to pre-wet.
• Optional Stream Splitter: Divides the stream to eliminate water on the trunk

*Please reach out for availability on swivel options

---

Specifications

• Base connection options:
  • Quick-Connect thread (standard)
  • Barb (special order)
• Flow range:
  • Swivel: 5.3 – 23.8 GPH
  • Jet: 7.9 – 23.8 GPH
• Wetted diameter*:
  • Swivel: 4.9 – 23 feet
  • Jet: 11.2 – 20.3 feet
