Name: Affordable and High-Quality Netafim Techline CV Dripline Available Now.
SKU: NF-T-CV-D
Price: 11.87 USD
Availability: InStock

New

Original price was: $16.95.Current price is: $11.87.

Container Size

Clear

SKU: NF-T-CV-D Categories: Drip Irrigation, Drip Tape Irrigation

100% High-Quality Guarantee
Safe Shopping Guaranteed
100% environmentally friendly material
Sustainable materials, for a better tomorrow.

Netafim Product Documents

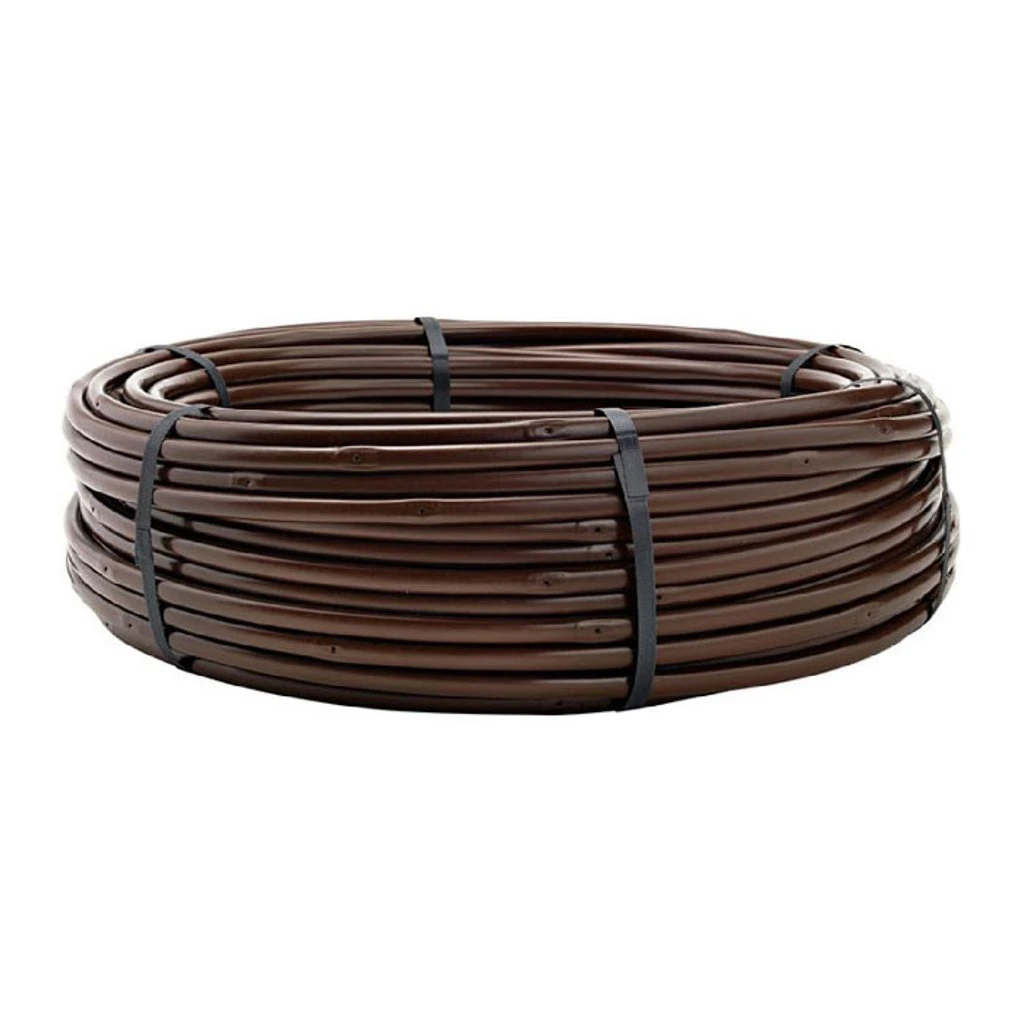

Techline® CV

Netafim continues to be the leader in innovation in the Landscape & Turf dripline market by introducing Techline™ CV manufactured with post-consumer recycled polyethylene. Techline™ CV Dripline has the most technologically advanced dripper available. Techline™ CV’s Check Valve feature keeps water from draining out of the dripline after zone shut-down.

Tubing O.D. is 17mm or 0.66 in.

Why Techline™ CV?

Laser Etched, For Easy Identification
Made With Post-Consumer Recycled Material
Qualifies for Use on Leed Projects
UV Resistant Tubing
Self-Contained, One-Piece Dripline Construction

Product Advantages

Unique Patented Emitter Design with Physical Root Barrier
Offset flow path, extra-large bath area, and raised outlet prevent root intrusion without chemical reliance.
Pressure Compensating
Precise and equal amounts of water are delivered over a broad pressure range.
Continuous Self-Flushing Emitter Design
Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted emitter operation.
Emitter With Anti-Siphon Feature
Prevents ingestion of debris into tubing caused by vacuum.

Applications

Reclaimed (recycled) water use
Subsurface or on-surface installations
Turf, shrubs, trees and flowers
Sports turf, tennis courts, golf courses
Slopes
Longer lateral runs
Curved, angular or narrow planting areas
High traffic/high liability areas
Areas subject to vandalism
High wind areas
At-grade windows
Green walls, green roofs
Raised planters

Specifications

Broadest choice of emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
Emitter spacings: 12”, 18“ and 24”
(24” spacing available for 0.6 and 0.9 GPH only)
Pressure compensation range: 14.5 to 58 psi
Bending radius: 7”
Maximum system pressure: 58 psi
Minimum system pressure: 14 psi
Tubing diameter: 0.66“ OD; 0.56” ID; 0.050” wall
Coil length: 100’, 250’, 500’, 1,000’
Minimum filtration: 120 mesh
Diaphragm made of silicon′
ISO 9261 Standard Compliance

Container Size

Netafim Techline CV Dripline .42 GPH Flow, 12 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .42 GPH Flow, 18 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .42 GPH Flow, 12 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 18 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 18 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 12 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 18 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 12 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .26 GPH Flow, 12 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 12 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline Blank Tubing – 1,000 Foot Coil, Netafim Techline CV Dripline Blank Tubing – 500 Foot Coil, Netafim Techline CV Dripline Blank Tubing – 250 Foot Coil, Netafim Techline CV Dripline Blank Tubing – 100 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 24 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 24 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 24 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 24 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 18 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 18 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 12 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 18 Inch Emitter Spacing – 500 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 18 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .42 GPH Flow, 18 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .42 GPH Flow, 18 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 12 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 12 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 24 Inch Emitter Spacing – 250 Foot Coil, Netafim Techline CV Dripline .61 GPH Flow, 24 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 12 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 12 Inch Emitter Spacing – 500 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 12 Inch Emitter Spacing – 1,000 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 18 Inch Emitter Spacing – 100 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 18 Inch Emitter Spacing – 500 Foot Coil, Netafim Techline CV Dripline .92 GPH Flow, 18 Inch Emitter Spacing – 1,000 Foot Coil
