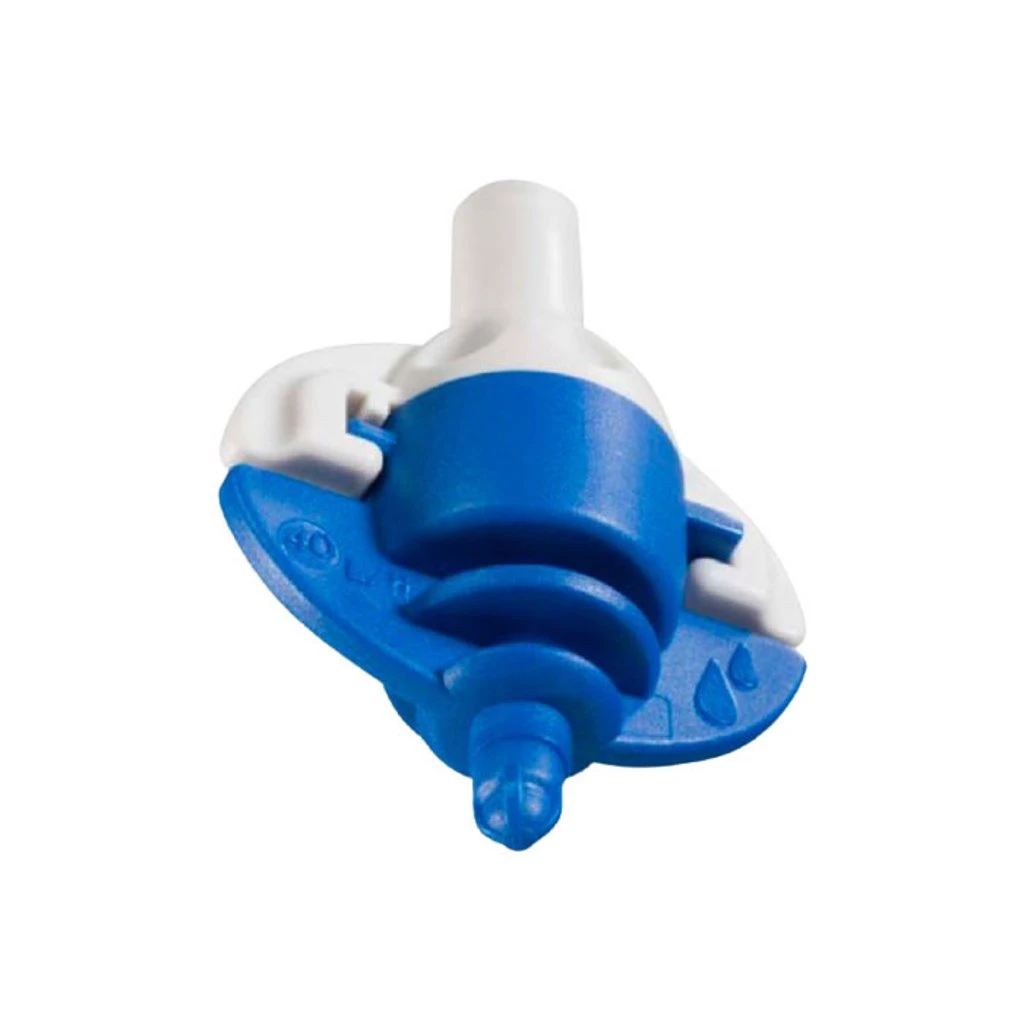

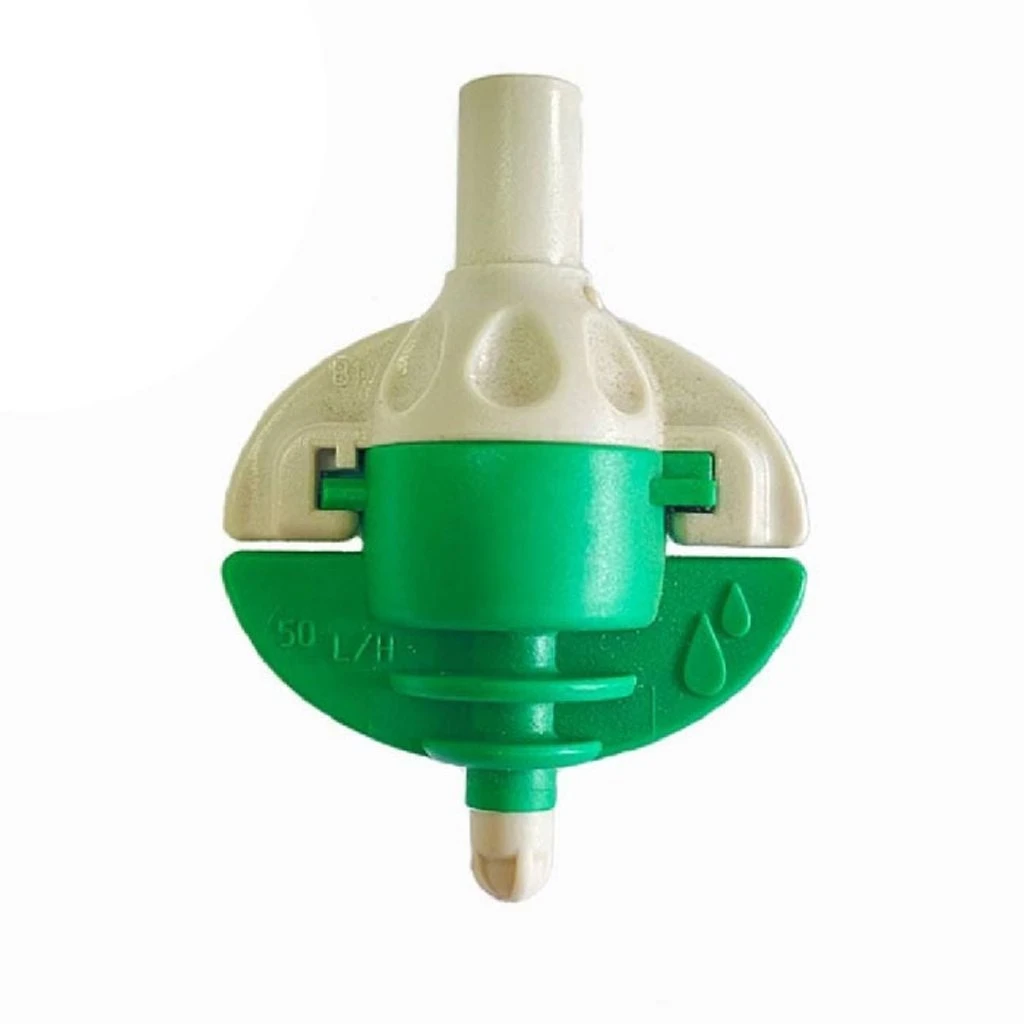

Netafim VibroNet Sprinkler Head

Netafim VibroNet Sprinkler

For Misting Larger Areas

Ideal for germination in nurseries and green houses, VibroNet’s innovative vibration technology delivers a perfect distribution of fine droplets across the germination table – helping you achieve significantly higher germination rates and healthy seedlings. Excellent uniformity can be achieved with sprinkler spacings between 3’ and 5’, with an elevation of 2’ to 5’. The VibroNet sprinkler can be used upright or upside down.

---

Why VibroNet™

• HIGH UNIFORMITY AND GERMINATION RATES: The uniform droplets are perfectly sized and distributed to guarantee effective germination.
• AVOID PLANT DAMAGE: Bridge-less design ensures drip-less operation so that any plants located below are protected from water drip-off.
• SELF-CLANING: “Vibration” mechanism prevents build-up of mineral deposits in the nozzle – reducing need for maintenance and repairs.
• HARD-WEARING: Micro-emitters are made from materials resistant to abrasive agrochemicals and harsh weather conditions.

---

Product Advantages

• Excellent uniformity of distribution on every single line.
• Vibration delivery system to generate a very fine and uniform drop.
• Self-cleaning, the vibration system prevents occlusions from forming on the nozzle.
• Made of high quality plastic materials resistant to chemicals normally used in agriculture and the most difficult weather conditions.
• Can be used both upside down and straight.
• Supplied with a light gray 4 x 6.5 mm diameter SSPe tube to reduce radiation absorption greenhouse lights, thus decreasing light losses, and with an AD valve to prevent light drainage of the distribution line.

---

Applications

• In all Greenhouse Irrigation systems and Germination

---

Specifications

• Structure without bow with vibrating action.
• 3 different flow rates: 25, 40, 50 l / h Nominal flow rate at 3.0 bar pressure Working pressure: 3.0 bar
• Recommended filtration: 120 mesh / 130 micron The filtration method is to be adjusted based on the dirt particles present in the water. If the sand dissolved in the water is greater than 2 ppm, a Hydrocyclone filter must be installed before the main filter. If sand / silt / clay is greater than 100 ppm, pre-treatment is required.
• Sprinkler connection: pressure male.
