Original price was: $319.00.$98.99Current price is: $98.99.
- 100% High-Quality Guarantee
- Safe Shopping Guaranteed
- 100% environmentally friendly material
- Sustainable materials, for a better tomorrow.
Monitor Up to 12 Data Points For The Ultimate Grow Room Control
Pulse Hub supports a versatile suite of industrial-grade sensors that provide you with the data needed to optimize growth conditions and give you a full understanding of every aspect of your grow.
First and foremost the Pulse Hub still maintains all the data tracking and notification features that our customers have come to love. Every pulse product will work together within the Pulse Grow application.
The new Pulse Hub is a modular and customizable system for monitoring all your critical parameters on one platform. It supports a wide range of up to 12 sensors per hub (with controllers in development), allowing you to scale up your output and increase yields while improving quality and consistency.
But most importantly, you choose the sensors you need. You’re able to have up to 12 of the same or different sensors connected to a single Hub, so you can buy additional sensors later on even after you’ve purchased a kit.
Built To Last
Pulse Hub is designed to withstand the extreme conditions that occur during cultivation, it uses waterproof marine-style cabling, making it easy to connect and place sensors in the harshest environments. The cabling design enables branching off of the main cable line to connect sensors (daisy-chaining), rather than requiring all individual sensor cables to lead back to the Hub. This streamlines setup, minimizes cable clutter, and simplifies sensor network management.
Pulse Hub Specs
- Power Input: 12V DC
- WIFI Requirements: 2.4GHz ONLY
- Dimensions: 175.5mm (L) x 100mm (W) x 38mm (H)
- Rating: IP67 – Rated for Commercial Use
Optional Kits Are Available To Get You Started!

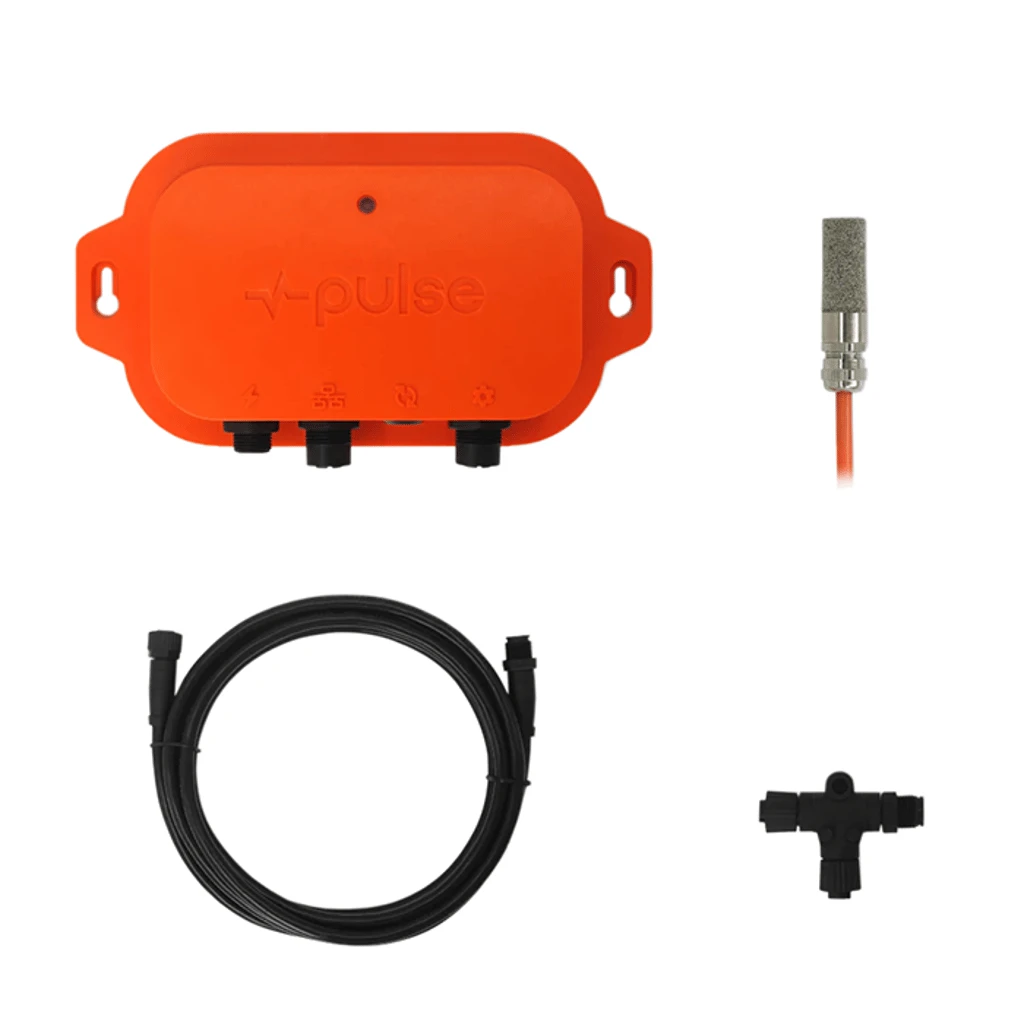

Environmental Starter Kit
Everything you need for 24/7 continuous monitoring of air temperature, humidity, and VPD. Expandable up to 12 Hub-ready sensors.
This kit includes:
- 1x Hub Base
- 1x THV-1: Air Temperature, Humidity, & VPD Probe
- 1x Backbone Extension Cable (6ft/2m)
- 1x 3-way T Connector

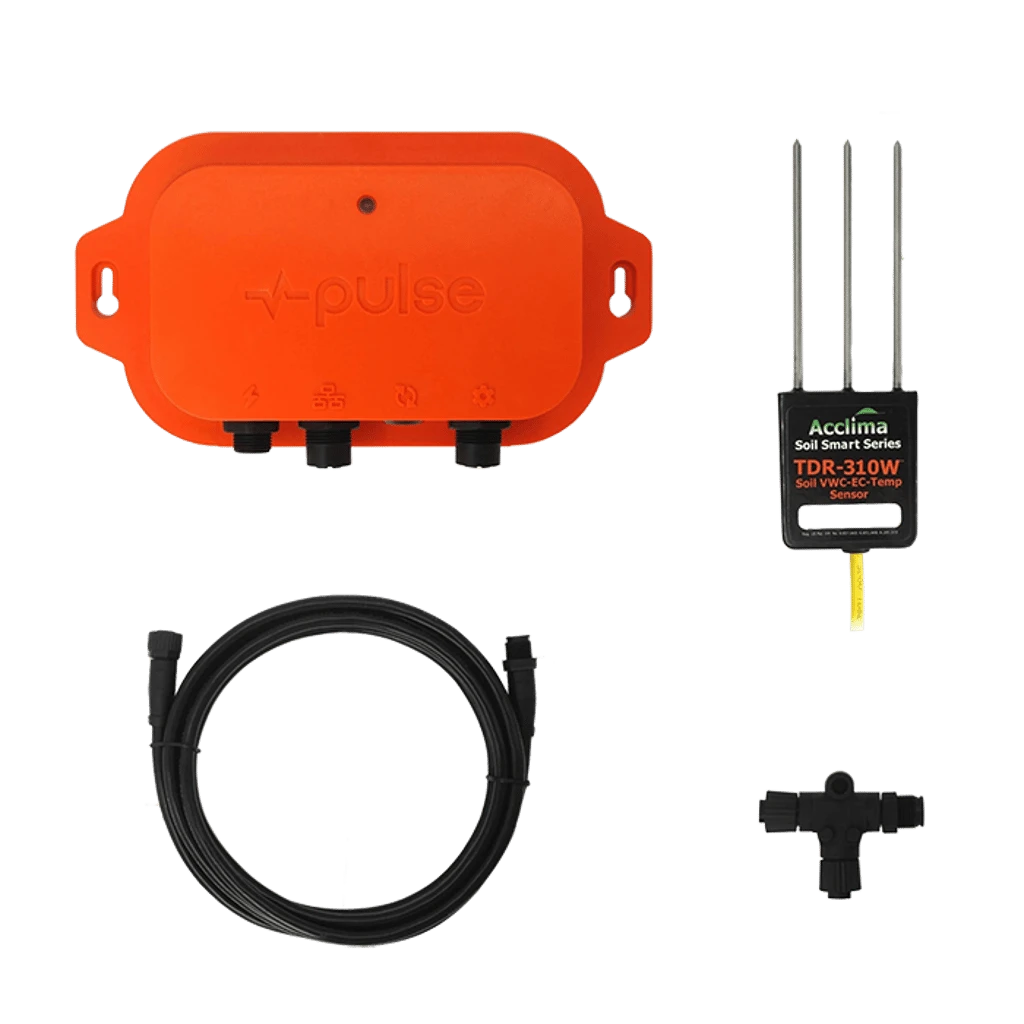

Soil Monitor Starter Kit
Everything you need for 24/7 continuous monitoring of soil moisture, EC, and temp. Expandable up to 12 Hub-ready sensors.
This kit includes:
- 1x Hub Base
- 1x VWC-1 Probe: Acclima TDR-310W Volumetric Water Content (soil moisture, temp, and EC)
- 1x Backbone Extension Cable (6ft/2m)
- 1x 3-way T Connector

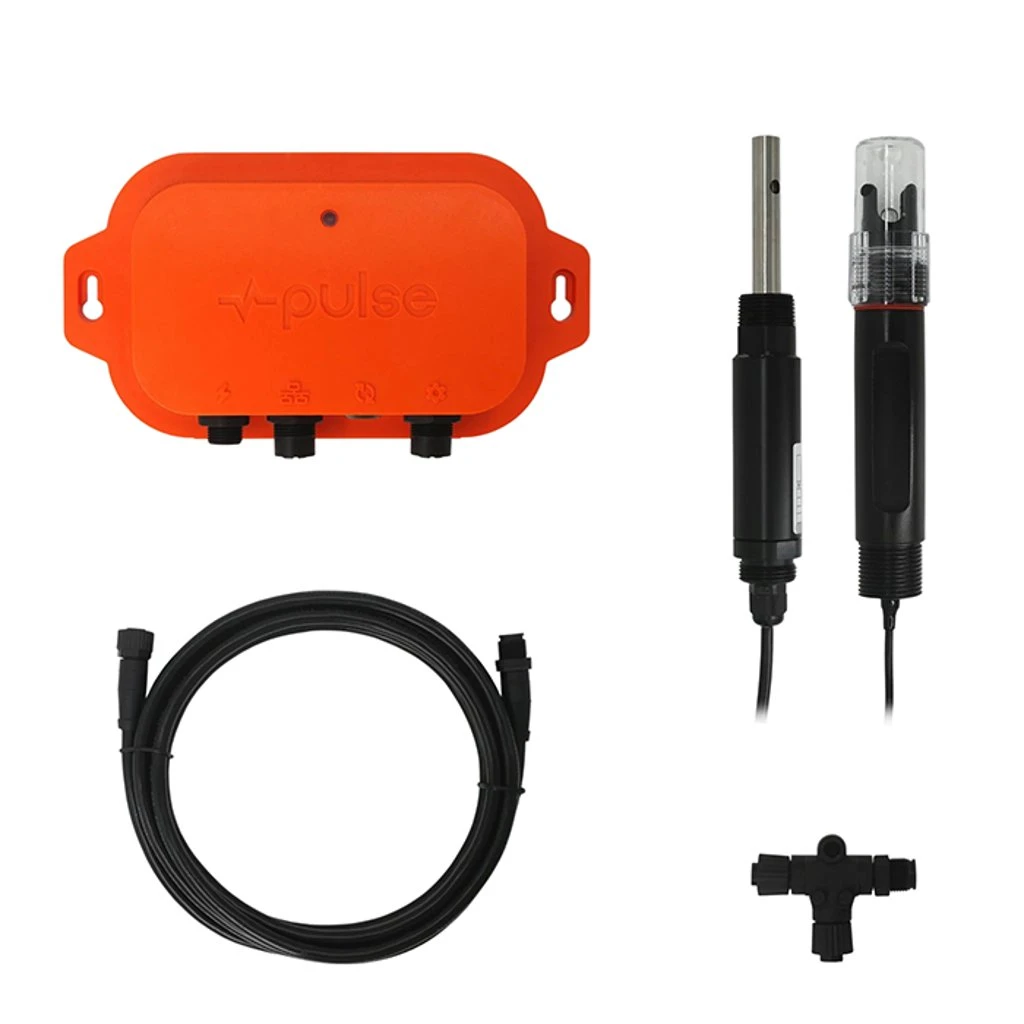

Reservoir Starter Kit
Everything you need for 24/7 continuous monitoring of pH, EC and temperature in reservoirs. Expandable up to 12 Hub-ready sensors.
This kit includes:
- 1x Hub Base
- 1x PH-1 Probe: pH (15ft cable)
- 1x EC-1 Probe: EC + water temp (15ft cable)
- 1x Backbone Extension Cable (6ft/2m)
- 1x 3-way T Connector
As mentioned, Pulse Hub offers remarkable adaptability with our cabling design. We’ve made a few sketches so you can get an idea of the possible setups.
Covering multiple grow spaces using a single Hub
You can use a variety of sensors in multiple grow spaces connected to a single Hub
Monitoring VWC across a large room
If you run a larger facility, you can track the VWC, soil EC, and soil temp with up to 12 sensors per Hub
Monitoring your tanks and reservoirs
You could use Pulse Hub is to track pH, EC and water temperature in all of your nutrient reservoirs
About The Sensors That The Hub Can Operate
THV-1 Temperature, Humidity, and VPD Probe
- IP44 Splash resistant. Suitable for extremely humid environments (clone domes, highland chambers, etc)
- 5ft cable
- Hub-ready
TVWC-1 Acclima TDR-310W Soil Moisture, EC & Temp
- Monitors soil moisture (VWC), soil temperature, and soil E.C.
- Ideal for rockwool & coco
- 15 feet / 5 meter cord
- Hub ready
TEC-1 Industrial Electronic Conductivity (EC) & Water Temp Probe
- Heavy duty, industrial grade
- IP68, Long-term submersible or 3/4″ inline
- 15ft cable
- Hub-ready
TPH-1 Industrial pH Probe
- Heavy duty, industrial grade
- IP68, Long-term submersible or 3/4″ inline
- 15ft cable
- Hub-ready
| Container Size | Pulse Hub Base Environmental Monitor, Pulse Hub Environmental Monitor Starter Kit With THV-1 Temperature, Humidity, and VPD Sensor, Pulse Hub Environmental & Soil Monitor Starter Kit With VWC-1 Soil Moisture, EC & Temp Sensor, Pulse Hub Reservoir Monitor Starter Kit With pH-1 & EC-1 Sensors |
|---|
