TrolMaster Aqua-X 24 Volt Control Board For Aqua-X Pro & Plus, 12 Outputs

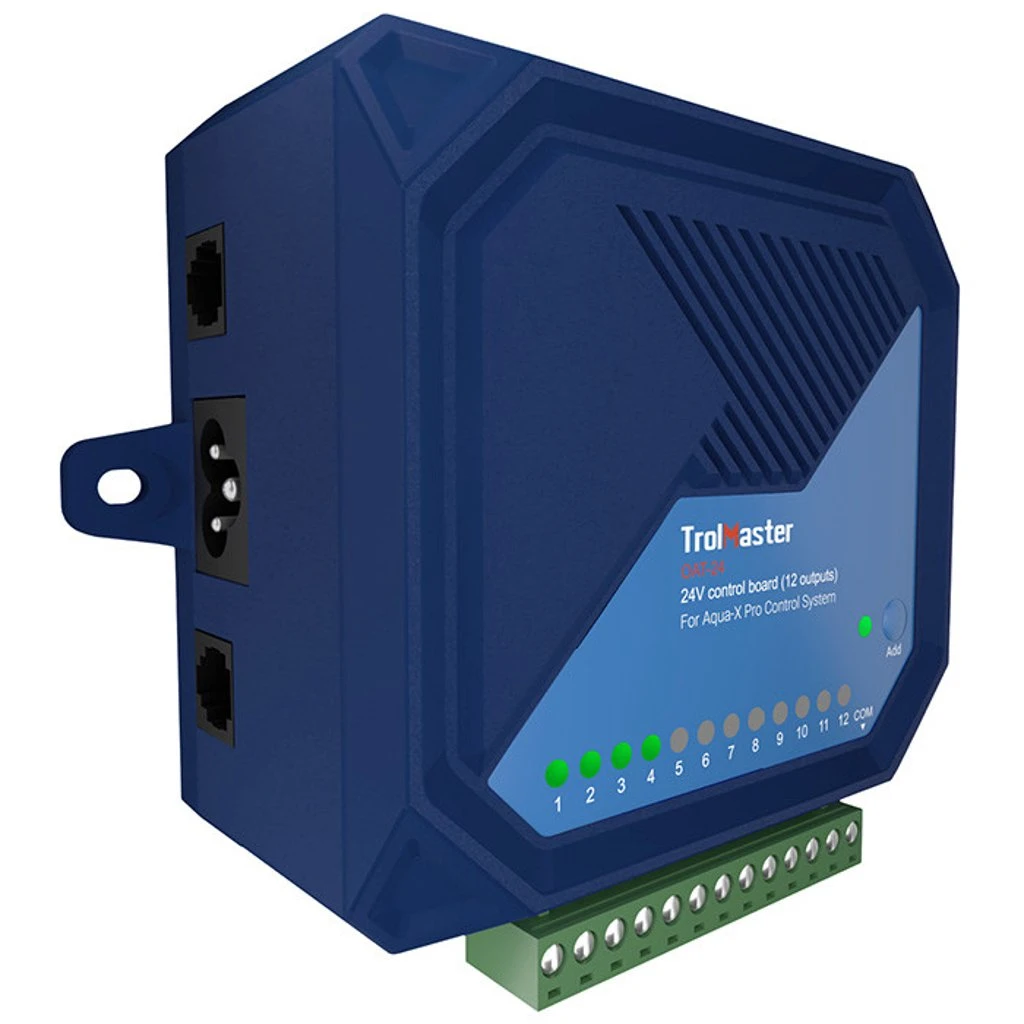

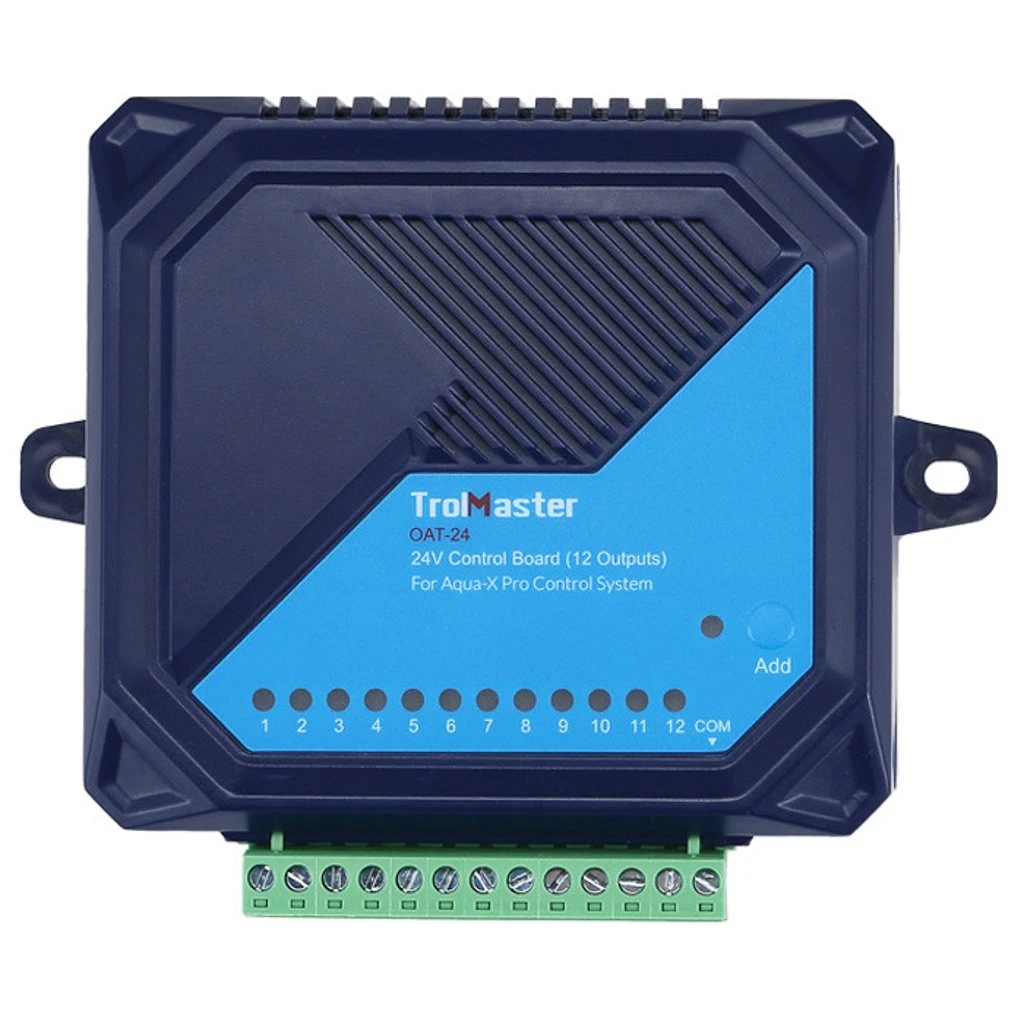

The OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids.

By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System could manage up to 600 individually controlled 24V valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Those 5 modes are feed by: Recycle, Schedule, Demand, Volume, or Auto-fill.

With the ability to control up to 600 solenoids using one of the 5 available control modes, users could easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.

*NOTE: If more than one OAT-24 is connected to the NFS Controller, you CAN’ T share a common wire from one OAT-24 to another OAT-24.

Included:

• 1x OAT-24
• 1x 16ft RJ12 Cable
• 1x Power Cable
• 1x 13-Pin Phoenix Type Connector

Specifications:

• Input Voltage: 100-240V, 50/60Hz
• Max Input Current: 1.7A
• Max Output Voltage/Current: 24VAC/0.5A per output
• Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%
